Modine Hot Dawg HD Terminal Board + TD Relay

Item #: 401531
Price: $89 - $135
    Availability:
    Availability: In Stock - Usually ships in 1 to 2 days.
    BRAND:
    Update price
    Quantity:

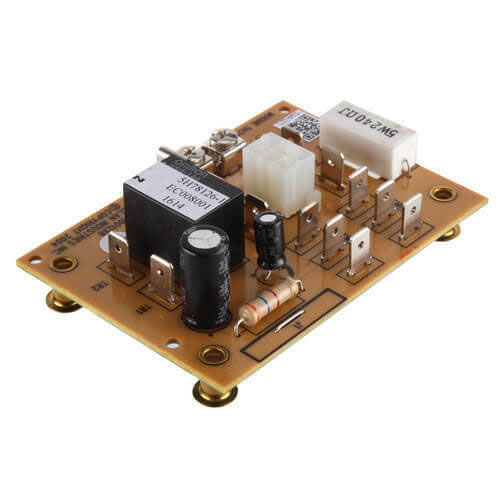

    Modine Part # 3H36849-1 and 5H78126-1 Replaces the separate Terminal Board (5H75028) and Time Delay Relay (5H75039) in older 101 and 102 series HD heaters and combines them into a single part. Replacement instructions and wiring diagram included.

    For Modine models HD30AH, HD45AH, HD60AH, & HD75AH

    Heater Part Options

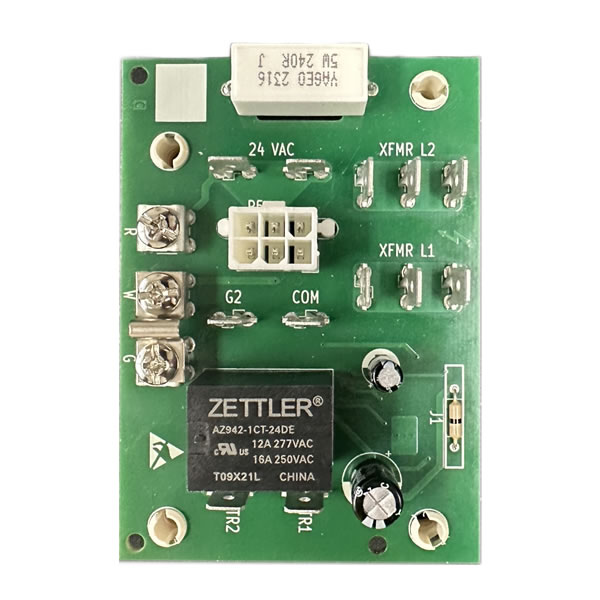

    An aftermarket part is any part not sourced from the heater manufacturer. By purchasing these parts direct, we save you money while still offering the same or better quality as OEM parts that come with the heater.

    Overall Customer Rating of 12 Reviews:
    review-star review-star review-star review-star review-star

    Modine Hot Dawg Control Board

    The replacement control board worked perfectly. The directions were clear enough to make the necessary wire changes and get the unit back in service. The mounting holes for the new board do not align very well with the existing holes. However it was easy to use one screw to hod the board in place. The unit operates well and it controls the ignition and recirculating fan operation very well. Best price and quick shipping. Great value!

    Fixed my garage heater

    The replacement main board took care of the issue in my Hot Dawg garage heater.
    Good price & shipped in a timely matter!!

    Modine Hot Dawg Terminal Board & TD Relay

    This circuit board was easy to install, just unplugged the wires & reattach to new board. The original relay was not turning on the blower fan, so the furnace would over-heat and the limit switch would shut down the burners. The furnace works like new again ! The price for this circuit board was good, and I received it quickly. Thank you very much to ACF Greenhouses!

    Modine Hot Dawg HD Terminal Board

    It works as it should.

    Modine Hot Dawg HD Terminal Board + TD Relay

    The site was easy to use, product arrived on time, instructions were easy to follow. Very good experience.

    Hot Dawg HD Terminal Board

    Easy to install. Works good.

    Very Pleased

    Great service, got the part I needed with quick shipping

    Modine Hot Dawg HD Terminal Board

    The part i bought for my modine heater was perfect. It fixed all my problems. No problem with order, fast shipping. Will use ACF greenhouses again. Prices are reasonable too

    Works great!

    The new board fixed my fan not blowing, and cleaned up the wiring a little bit. It came with the directions to rewire for the new board and they were easy to understand and follow. FYI I'm terrible with this type of stuff so if I can do it majority of people should be able to as well!

    HD Terminal Board

    install was easy and is working perfectly
