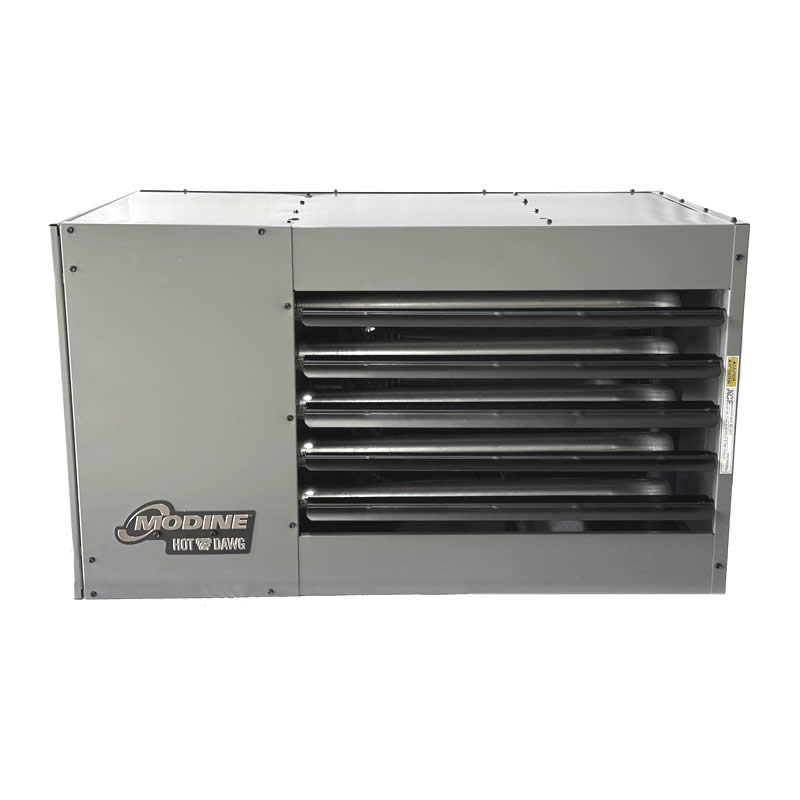

Modine Hot Dawg heaters are an affordable way to heat your garage, shop, greenhouse, or barn. Modine HD heaters feature direct spark ignition and low profile design. Each Hot Dawg heater includes: electronic ignition, power exhaust system, advanced diagnostic system for dependable worry-free operation, lots of safety features, high power fan to provide even heat distribution, rust-resistant aluminized steel exchanger, and a baked-on enamel finish made to protect the HD from harsh environments. Some wiring required. Requires 110/120v electricity. Modine Hot Dawg units come setup for propane or natural gas. Call for elevations over 5500' above sea level.
Features
- 80% efficient
- Made in the USA
- Certified for residential, commercial, and industrial use
- Direct spark ignition
- Power vented exhaust
- Convenient diagnostic system for troubleshooting
- Mounting brackets included
- 10 year warranty on the heat exchanger
Performance Specifications
| Model
|
Application
|
BTU Input
|
BTU Output
|
W x D x H
|
Weight (lbs)
|
| HD30
|
1 to 1-1/2 Car Garage
200 to 450 Sq. Ft.
|
30,000
|
24,000
|
26.8" x 22" x 12.2"
|
68
|
| HD45
|
2 to 2-1/2 Car Garage
450 to 700 Sq. Ft.
|
45,000
|
36,000
|
26.8" x 22" x 12.2
|
78
|
| HD60
|
3 to 3-1/2 Car Garage
700 to 950 Sq. Ft.
|
60,000
|
48,000
|
26.8" x 25" x 18"
|
80
|
| HD75
|
4+ Car Garage
950 to 1200 Sq. Ft.
|
75,000
|
60,000
|
26.8" x 25" x 18"
|
85
|
| HD100
|
Large Garage or Shop
1200 to 1600 Sq. Ft.
|
100,000
|
80,000
|
35.5" x 31" x 20.5"
|
125
|
| HD125
|
Warehouse or Shop
1600 to 2000 Sq. Ft.
|
125,000
|
100,000
|
35.5" x 31" x 20.5"
|
128
|
Modine HD Heater Specs and Dimensions - Includes all of the Modine HD heater dimensions and performance data.
Modine HD Heater Installation Manual - Complete instruction manual that comes with each Modine HD heater.
Modine HD Heater Thermostat Wiring Diagrams - Includes wiring diagrams for the most common thermostats.
Modine HD Heater Troubleshooting Guide - Need help diagnosing an issue with your Modine Hd heater? This guide will help you figure out where the problem is and get your heater running again.
Item # 4010190, 4010195, HD125AS0121FBAN, HD125AS0111FBAN, HD125AS0121, HD125AS0111
