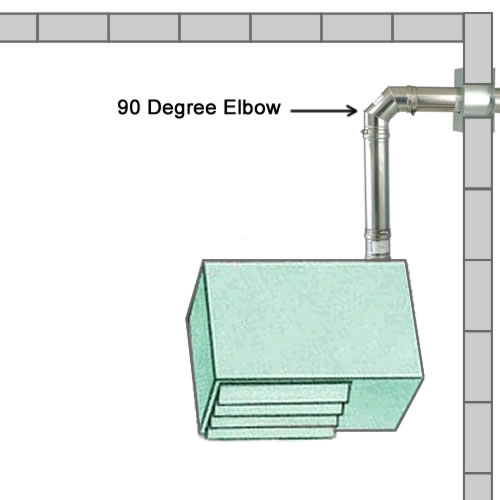

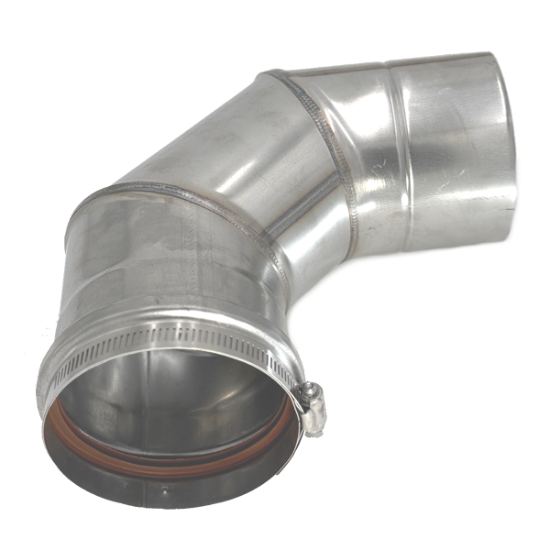

The 90 degree elbow allows installation of a gas heater at a 90 degree angle inside the structure. It can also be used if vertical runs are needed as well. The angle is not adjustable. This stainless steel vent pipe fitting features a patented built-in mechanical locking band and triple-lipped directional gaskets. All pipes and components are engineered with smooth clean welds located 90° from mechanical locking bands. All pipe and fittings are UL1738 approved for category II, III and IV venting applications.
What is UL 1738? In short, it is a US standard for gas venting systems required in category 3 applications. Category 3 refers to positive vent pressure which is created by exhaust blowers in unit heaters. These vent systems must be constructed of AL29-4C® stainless steel, contain gaskets for sealing, and have a built in mechanical locking band among other requirements. All category 3 vent pipe and fittings offered are single wall.
Features
- Made of AL29-4C® super-ferritic stainless steel
- Built-in high temp silcone gaskets for air tight seal
- Built-in locking band to insure a secure fit (no hardware needed)
- UL1738 approved for category 3 venting applications.
- Limited lifetime warranty
Item # VC 4650120, 4651120, 4651320
