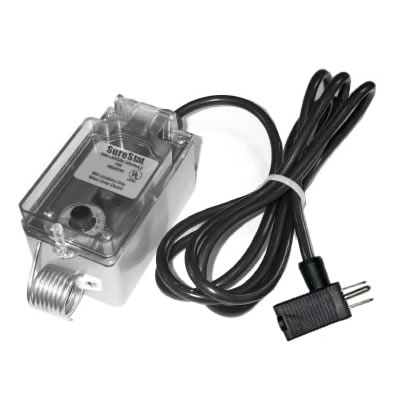

This single stage thermostat comes prewired with an 8' grounded Plug in power cord. Simply plug the thermostat into a standard 110/120 volt outlet. Then plug any 110/120 volt appliance into the outlet on the plug of the thermostat. Heating thermostat is great for automating portable electric heaters.
SureStat Thermostat Features
- Wide temperature range: 30° to 110° F
- Fixed 3 degree differential
- Plug-N-Play, no wiring needed (16 amp/120v max)
- Includes 8' prewired cord

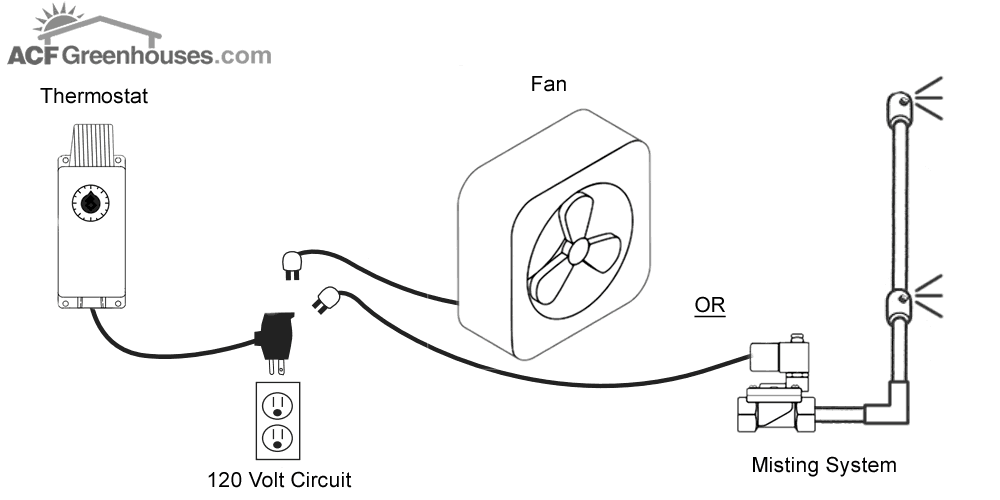

- Can be rewired for cooling
- Weatherproof enclosure
 |
Thermostat
placement in a greenhouse: To get the desired temperature,
thermostats should be located at plant height near the center of the
greenhouse where they are not influenced by drafts or the temperature of an exterior wall. It
is best if both heating and cooling thermostats are located together and
protected from direct contact with sunlight and water. One simple way to
accomplish this would be to mount the thermostat(s) to a piece of wood (or other nonconductive material)
with a top on it like in the picture to the left. Wood should be painted
white to shade it from the sun. |
What is a Differential? The difference between on and off setpoints on a control. For temperature, it is the difference in degrees between the thermostat's on and off setting. If you set a heating thermostat with a 3 degree differential to 71°, it will supply power at any temperature below 71° and cut off at 74° (3 degrees above the setpoint). A cooling thermostat would cut on above 71° and off at 68°.
