Variable Speed Wired Exhaust Fan Systems

Item #: 8005
  • Save 10% versus purchasing items separately
  • Our premier hard-wired fan system
Price: $425 - $865
    Availability:
    Availability: In Stock - Usually ships in 1 to 2 days.
    FAN SYSTEM:
    Update price
    Quantity:
    Need help sizing a fan system for your greenhouse? Use our Exhaust Fan Size Calculator

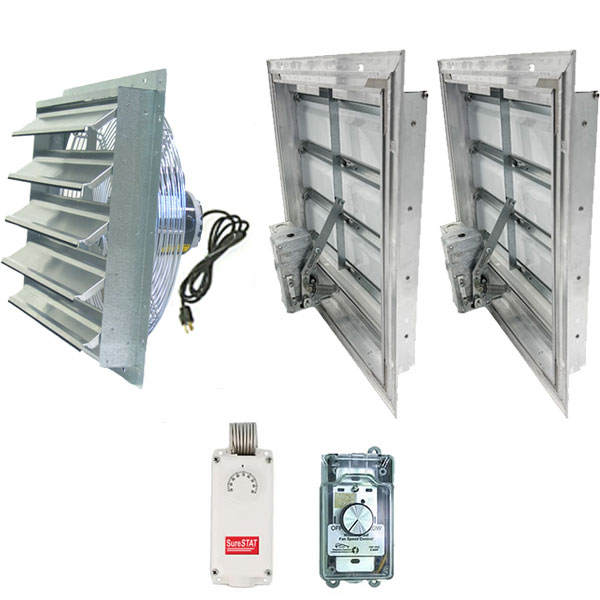

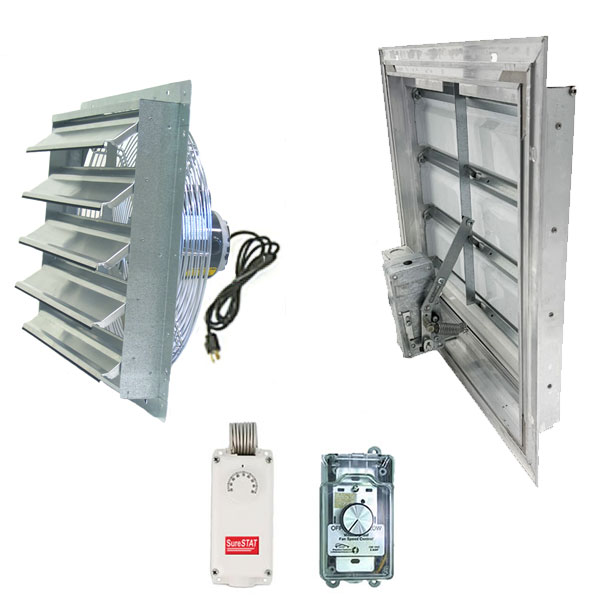

    Each fan system is packaged with all of the equipment needed to provide an automated fan system for your greenhouse, shop, or garage. All included items are sized to provide optimal functionality of each fan ventilation system. Links are provided below to each piece of equipment in the fan packages. Just click on the text for more information. Dimensions and specifications are also provided in the installation instructions below. Fan systems need a 120v power source. Wiring required.

    Variable Speed Fan System Features:

    • Waterproof thermostat with 30° to 110° F degree temperature range

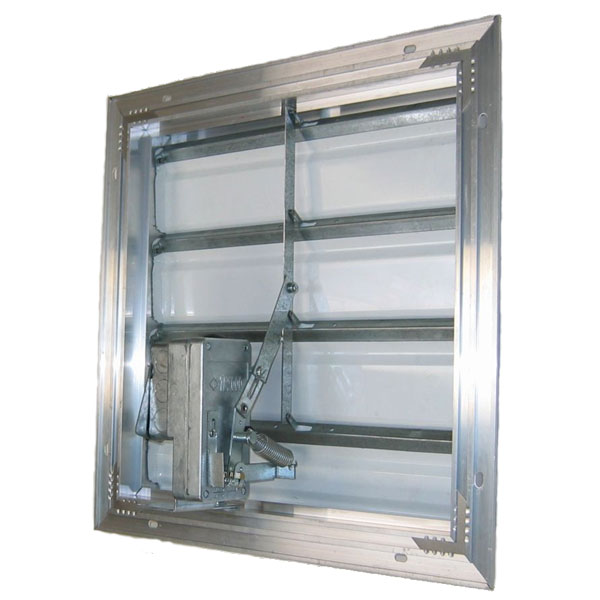

    • Motorized aluminum intake shutters
    • Heavy duty variable speed fan made for harsh environments
    • Fans can be adjusted from 100% to ~35% of CFM with the included fan speed control


    Variable Speed Fan System Specifications

    Fan System Model #
    CFM Range
    Total Amps / Watts
    Items Included with System
    A1216
    970 to 340
    1.44 amps
    173 watts
    1 - 12" variable speed fan
    1 - 16" intake shutter + motor
    1 - SureStat TS110 thermostat
    1 - fan speed control
    A1212
    970 to 340
    1.46 amps
    175 watts
    1 - 12" variable speed fan
    2 - 12" intake shutters + motors
    1 - SureStat TS110 thermostat
    1 - fan speed control
    A1620
    1440 to 504
    1.44 amps
    173 watts
    1 - 16" variable speed fan
    1 - 20" intake shutter + motor
    1 - SureStat TS110 thermostat
    1 - fan speed control
    A1616
    1440 to 504
    1.46 amps
    175 watts
    1 - 16" variable speed fan
    2 - 16" intake shutters + motors
    1 - SureStat TS110 thermostat
    1 - fan speed control
    A2024
    3140 to 1099
    3.82 amps
    459 watts
    1 - 20" variable speed fan
    1 - 24" intake shutter + motor
    1 - SureStat TS110 thermostat
    1 - fan speed control
    A2020
    3140 to 1099
    3.84 amps
    462 watts
    1 - 20" variable speed fan
    2 - 20" intake shutters + motors
    1 - SureStat TS110 thermostat
    1 - fan speed control
    A2430
    4640 to 1624
    4.82 amps
    579 watts
    1 - 24" variable speed fan
    1 - 30" intake shutter + motor
    1 - SureStat TS110 thermostat
    1 - fan speed control
    A2424
    4640 to 1624
    4.84 amps
    582 watts
    1 - 24" variable speed fan
    2 - 24" intake shutters + motors
    1 - SureStat TS110 thermostat
    1 - fan speed control

    Variable Speed Fan System in Action


    Product Manuals, Tips, Specs, & Guides

    Variable Speed Fan System Instruction Manual - Includes dimensions, layout, wiring and installation tips.
    Fan & Shutter Size Calculator - Not sure what size fan system you need for your greenhouse? Just enter the measurements into our calculator to find out!


    Item # 8005, 8005150, 8005155, 8005160, 8005165, 8005170, 8005175, 8005180, 8005185, 800567

    Product Manuals, Tips, Specs, & Guides

    Variable Speed Fan System Instruction Manual - Includes dimensions, layout, wiring and installation tips.
    Fan & Shutter Size Calculator - Not sure what size fan system you need for your greenhouse? Just enter the measurements into our calculator to find out!

    Overall Customer Rating of 12 Reviews:
    review-star review-star review-star review-star review-star

    High quality, and HEAVY

    I ordered this package to provide ventilation for my 14x24 foot greenhouse with polycarb panels. The components (shutters, motors, fan plus its louver grate) are all great quality, clearly meant to take a lot of use (and possibly abuse), and mount cleanly with some aluminum angle iron or 2x4 timber framing. One thing that wasn't apparent to me from the website is that the fan unit is VERY HEAVY due to its direct drive motor. This is something to consider, especially if you want to mount the unit high off the floor as recommended. If I did this again I'd use a rented cherry picker or scaffolding and not a ladder.

    16 inch exhaust fan kit

    Everything came in great condition and was easy to assemble. After I installed the system, everything worked perfectly on the first try. Very happy with this system. My plants love it.

    greenhouse ventilation system

    I ordered the Variable Speed Complete Exhaust Fan system and wiring and installation was relatively easy. Excellent customer service! Received damaged item and they immediately shipped out new one. All products were of high quality.

    Happy with purchase

    Very nice construction and features.

    Fabulous systems!!!

    I have purchased four of these systems. And they are perfect. One for each greenhouse. Quality products. Very, very pleased.

    Charlie

    Easy to talk to the sales people and they were helpful getting the correct size Eqipment needed for my Greenhouse. I received all my parts needed within 7 days Of ordering.
    The competition would have been a month out and almost $500 more.

    Exhaust fan, thermo stat, shutter systems

    everything is installed great quality products and works great . it only took a few days for it to be all delivered. which worked out great, since I originally looked at another green house supplier and they told me it would be weeks.. the staff at acf greenhouse were all very helpful.

    Easy setup and cools great

    I have had this in for about 3 weeks now and it is cooling my 10x12 greenhouse great. I have the fan mounted about 1 foot below the ridgeline of the greenhouse and the intake on the other end. I love it being fully automated and requires no additional adjusting.

    A1616 Variable Speed Exhaust Fan System

    I received all the components on time with one exception- I received a T110 Thermostat instead of the ACF 5 Amp speed control. I notified ACF and they immediately shipped me a replacement. While waiting, I was able to install the exhaust fan and two intake shutters in my Palram Americana 12' x 12' greenhouse, temporarily bypassing the speed control. The instructions were pretty good and everything worked great. The air flow with the two intake shutters is better than I expected and I shouldn't see any more 110°F temperatures in the greenhouse. Excellent quality components- shutters and motors are Dayton.
    Only two minor issues- the intake shutter doors are aluminum and a little fragile until you get the shutters installed. Also I had expected the fan speed control to automatically vary the fan speed based on how much the temperature exceeded the set point but it merely allows you to set the fan speed to a percentage of full speed.
    Overall I am very satisfied with the system and can recommend it.

    Greenhouse fan system

    It is great! Got it installed, looking good, and working great. Thank you all so much for always having what I need to keep my plants happy.
